Orbital Resonance

An orbital resonance is a gravitational phenomenon in which two bodies that are both orbiting around one parent body are in a specific pattern. For example, if for every orbit Planet Bill makes around a star, Planet Joe makes exactly three, the two bodies are in an orbital resonance (the notation for this is 1:3). It may seem unlikely that such a correspondence would occur in the physical universe and that this is a purely abstract notion, but this is not the case. In fact, gravity often pushes objects into these resonances when the objects are of comparable size, but ejects them if one is too much bigger than the other, as with Jupiter and an asteroid.

In fact, there are resonances in our Solar System! The simplest case is the one between Neptune and Pluto. For every two orbits Pluto makes, Neptune makes exactly three. This is why it is impossible for the two bodies every to collide, despite the fact that their orbits cross. This is the only stable resonance involving two planetary (although Pluto is a dwarf planet) bodies, but other objects outside of Neptune's orbit are in resonances with Neptune, known as Trans-Neptunian objects. Most of these are smaller than Pluto, but one larger one is known: the dwarf planet Eris. However, Eris is not known to be in an exact orbital resonance with Neptune.

Other Trans-Neptunian objects sometimes are in resonances with Neptune, the most common being (object:Neptune) 2:3, corresponding to Pluto and other bodies, 3:5, 4:7, 1:2, and other rarer ones such as 2:5, 3:4, 4:5, 1:4, 1:5, 1:3, 3:7, and 6:11. Some of the latter sometimes correspond to only one known object, and may be coincidental. Some are also unstable, and smaller objects can often be ejected from a resonance by a gravitational pull quite easily. The special case of a 1:1 orbital resonance is addressed in the post, Lagrangian Points.

A chart showing known objects, resonances, and distances of various objects beyond Neptune's orbit.

Resonances of a different kind impact asteroids in the main asteroid belt. Jupiter's gravitational pull has a great effect on the asteroid belt, and unlike Neptune's resonances, are much closer to each other. Therefore, rather than objects commonly existing at these resonances, repeated encounters with Jupiter ejects the asteroids onto another orbit. Due to this, there are gaps, called Kirkwood Gaps, that exist at the main orbital resonances with Jupiter, named after Daniel Kirkwood, who observed and explained the nature of the gaps in 1857. The population of asteroids in relation to the gaps is shown in the image below.

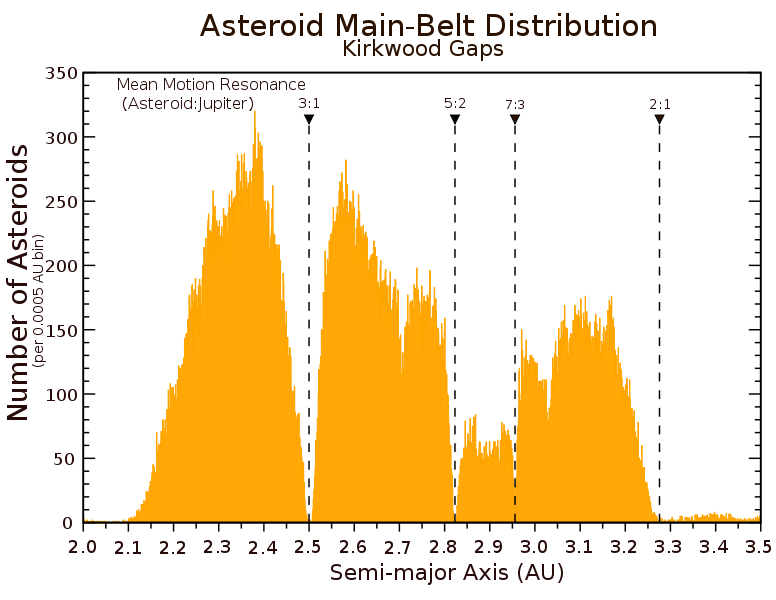

This image shows four main resonances and the effect they have on asteroid population. There are other weaker ones that cause a lower number of asteroids to keep stable orbits, but they are no nearly as drastic. Two examples are 7:3, shown at 2.71 AU, and 9:4, at 3.03 AU.

There are a few other major resonances in our Solar System, including a 1:2 between Saturn's moons Dione and Enceladus and the 3:4 one between Saturn's moons Hyperion and Titan. However, the most famous resonance in our Solar System is the only known Laplace resonance, or one involving more than two bodies.

It is the 1:2:4 resonance between three of the four Galilean moons of Jupiter. Io is the 1, Europa the 2, and Ganymede the 4. This remarkable property supposedly emerged with a gravitational encounter of Ganymede and another body, resulting with the instability of Ganymede's orbit. Due to the gravitational pull of Io and Europa coupled with that of Jupiter, Ganymede settled into its position in the resonance.

Outside of the Solar System, many other orbital resonances probably exist, between exosolar planets, and one known example is a pair of planets orbiting the star cataloged as GJ 876. They are comparable in size to Jupiter, and both orbit extremely close to their parent star, within what would be the orbit of Mercury, but have a 1:2 resonance. This type of resonance among major, Jupiter-sized planets is more significant than any other one known, and is unique, as far as we know.

There are also other types of resonances, such as secular resonance, which is the alignment of the precessions of two bodies. Precession is the cycle in which the axial tilt of a body orbits around back to its starting position. For the Earth, the axial tilt is 23.44º, and it takes approximately 41,000 years to run a full cycle. During this time, the axial tilt varies from 22º to 24º. Where the north pole points in space is known as the celestial north pole. Over time, this pole moves over the heavens, and the north star therefore changes. Currently, the closest major star is Polaris, but over the next tens of thousands years it will progressively move away and then back when the cycle is complete. As a result, Vega will also be the north pole star for a time in each cycle.

This and other types of resonance are common throughout the Solar System within seemingly complex and random gravitational interactions.

Another type of synchronization that may be called a resonance, is the tidal force of a satellite on a parent body. Over time, the pair of bodies tug on each other gravitationally, pushing the slightly heavier side of each inward so that the period of rotational of the smaller body is eventually exactly the same as its revolution period, and is tidally locked. Many moons in the Solar System exhibit this feature and the most well known is our own moon. We only see one face of it because it is tidally locked to the Earth. In addition to this however, there also is a gravitational tug from the moon that is slowly tidally locking the Earth and the Earth day is slowly getting longer, increasing by mere fractions of a second each year. In addition, the two moons of Mars, at least eight of Jupiter's moons, fifteen of Saturn's moons, five of Uranus, two of Neptune, and the Pluto-Charon system (both bodies are locked to each other). Also, there is one known extrasolar instance of mutual tidal locking in which a star and its giant planet are tidally locked to each other.

One other special type of tidal locking is the Mercury-Sun system. For every two revolutions of Mercury around the Sun, Mercury revolves thrice on its axis. This relation is known to be stable, but it is a unique case.

Resonances are mysterious connections in the heavens which are difficult to find and even more difficult to understand.

Sources:,,, NASA,
